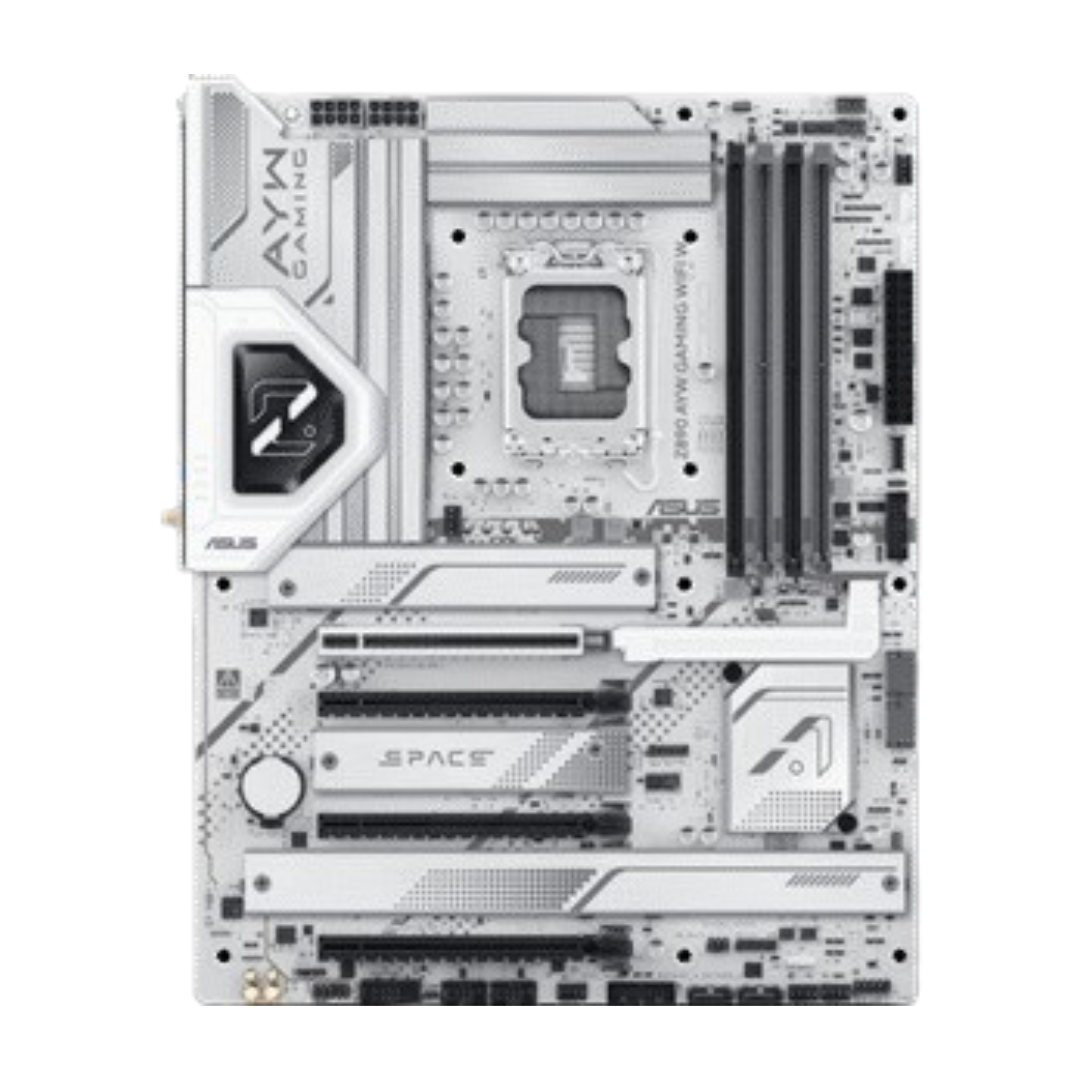

ASUS Z890 AYW GAMING WIFI W

Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Supports up to 9066+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel^® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x USB 20Gbps port (USB Type-C^®) supports DisplayPort video output***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***Supports max. 4K@120Hz as specified in DisplayPort 1.4.

****VGA resolution support depends on processors’ or graphic cards’ resolution.

*****While installing the operating system, please ensure that your monitor is connected to the DisplayPort on the back I/O panel or to a discrete graphics card.

1 x PCIe 5.0 x16 slot

Intel^® Z890 Chipset

2 x PCIe 4.0 x16 slots (supports x4 mode)

1 x PCIe 4.0 x16 slot (supports x1 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Intel^® Core™ Ultra Processors(Series 2) *

M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel^® Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

ASUS LANGuard

Supports 2.4/5GHz frequency band

Bluetooth^® v5.3*

* The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

1 x USB 20Gbps port (1 x USB Type-C^® with DP Alt mode)*

3 x USB 10Gbps ports (3 x Type-A)

4 x USB 2.0 ports (4 x Type-A)***

Front USB (Total 9 ports)

1 x USB 20Gbps connector (supports USB Type-C^® with up to 30W PD/PPS Fast-charge )**

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports***

* USB Type-C^® power delivery output: max. 5V/3A

** USB Type-C^® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

*** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding

– Premium audio capacitors

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

3 x USB 10Gbps ports (3 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage Related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C^® with up to 30W PD/PPS Fast-charge )

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen2 headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin Front Panel System header

1 x Thunderbolt™ (USB4^®) Header

– DIGI+ VRM (- Digital power design with DrMOS)

– LANGuard

– Overvoltage protection

– SafeSlot

– Stainless-steel back I/O

ASUS Q-Design

– M.2 Q-Latch

– PCIe Slot Q-Release

– Q-Dashboard

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsinks

– VRM heatsinks design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– ProCool

– Pre-mounted I/O shield

Aura Sync

– Addressable Gen2 headers

Front Panel USB 20Gbps with PD Fast Charge Support

– Support: up to 30W fast charging and USB Wattage Watcher

– Output:  5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

– Compatible with PD3.0 and PPS

Armoury Crate

– Aura Sync

– Fan Xpert 4 (with AI Cooling II)

– Power Saving

ASUS AI Advisor

ASUS DriverHub

ASUS GlideX

USB Wattage Watcher

TurboV Core

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash

– ASUS UEFI BIOS EZ Mode

– ASUS MyHotkey

NPU Boost (Intel K-series Processors only)

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antenna

2 x M.2 rubber packages

1 x Screw package for M.2 SSD

Documentation

1 x Quick start guide

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
