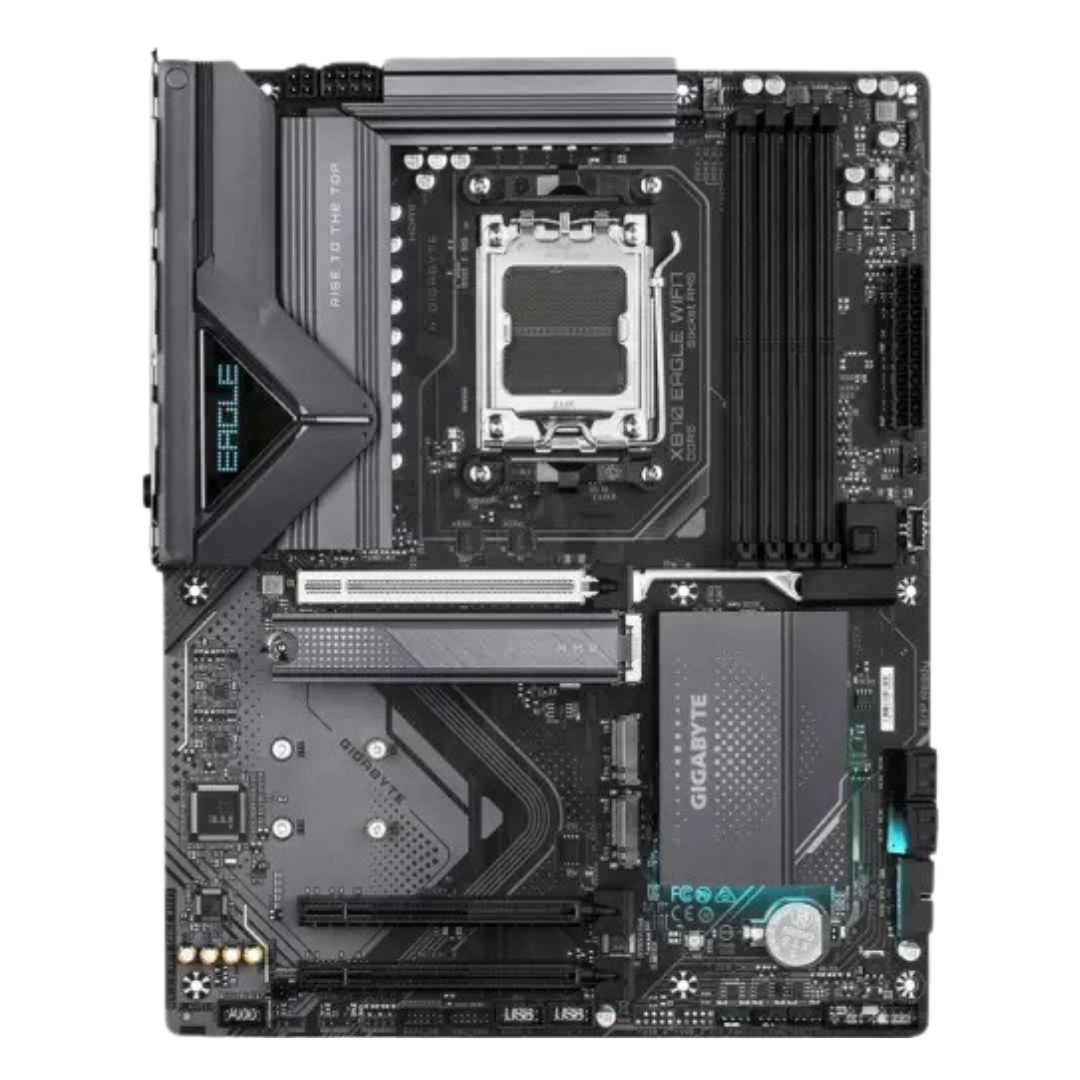

GIGABYTE X870 EAGLE WIFI7

Key Features

• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced  & M.2 Thermal Guard
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
  • CPU
    AMD Socket AM5, support for:

    AMD Ryzen™ 9000 Series Processors/

    AMD Ryzen™ 8000 Series Processors/

    AMD Ryzen™ 7000 Series Processors

    (Go to GIGABYTE’s website for the latest CPU support list.)

  • Chipset
    AMD X870
  • Memory
    Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

  • Onboard Graphics

    Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:

    – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz

    * Support for DisplayPort 1.4 version and HDR.

    Integrated Graphics Processor with AMD Radeon™ Graphics support:

    – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    ** Support native HDMI 2.1 TMDS compatible ports.

    (Graphics specifications may vary depending on CPU support.)

  • Audio

    Realtek® Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module

    MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

    – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

    – BLUETOOTH 5.4

    – Support for 11be 160MHz wireless standard

    Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

    – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

    – BLUETOOTH 5.4

    – Support for 11be 160MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)

    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.

  • Expansion Slots

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

    AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

    AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

  • Storage Interface

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

    AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

    AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

    AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs

    * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.

    4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB
    CPU+ASMedia USB4® controller:

    – 2 x USB4® USB Type-C® ports on the back panel

    CPU:

    – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

    – 1 x USB 3.2 Gen 1 port on the back panel

    CPU+USB 2.0 Hub:

    – 4 x USB 2.0/1.1 ports on the back panel

    Chipset:

    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header

    – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    – 4 x USB 2.0/1.1 ports available through the internal USB headers

  • Internal I/O Connectors
    1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x 4-pin ATX 12V power connector

    1 x CPU fan header

    1 x CPU fan/water cooling pump header

    4 x system fan headers

    3 x addressable RGB Gen2 LED strip headers

    1 x RGB LED strip header

    4 x SATA 6Gb/s connectors

    3 x M.2 Socket 3 connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C® header, with USB 3.2 Gen 2×2 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    1 x power button

    1 x reset button

    1 x reset jumper

    1 x Clear CMOS jumper

  • Back Panel Connectors
    1 x Q-Flash Plus button

    2 x antenna connectors (2T2R)

    1 x HDMI port*

    2 x USB4® USB Type-C® ports (DisplayPort*)

    1 x USB 3.2 Gen 2 Type-A port (red)

    3 x USB 3.2 Gen 1 ports

    4 x USB 2.0/1.1 ports

    1 x RJ-45 port

    3 x audio jacks

    * Actual support may vary by CPU.

  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring

    Voltage detection

    Temperature detection

    Fan speed detection

    Water cooling flow rate detection

    Fan fail warning

    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS
    1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash

    Support for Q-Flash Plus

    Support for Smart Backup

  • Bundled Software
    Norton® Internet Security (OEM version)

    LAN bandwidth management software

  • Operating System
    Support for Windows 11 64-bit
  • Form Factor
    ATX Form Factor; 30.5cm x 24.4cm

  * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.

  * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.

  * All trademarks and logos are the properties of their respective holders.

  * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
